Multihead VFFS Packing Machine PLC Control For Noodle Products
Weighing & Packing Solution for Noddle Products with VFFS Packing
Machine
Application:
Applicable for weighing of granular, bar-shaped products, such as
sunflower / melon seeds, almonds, pistachios, pine nuts, candies,
puffed food, beans, frozen food, pet food, snacks, hardware and
chemicals.
Main Function & Features:
1. Professional digital weighing module with high precision and
good stability
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized
access; up to 16 different languages for choice; application
software upgraded through USB.
4. Factory parameters recovery function; 99 preset product
parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent
products from blocking.
6. Weighing and counting function to meet diverse needs from
customers.
7. Real-time display of amplitude of each vibration pan as well as
product weight in each hopper to better monitor the running status
of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and
waterproof design.
9. Cleaning function: able to make the hoppers in opening state for
easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and
cost-saving.
Technic Parameter:
| Model | TY-A-M10-2
|
| Max. Weighing (one hopper) | 20-1000g
|
| Accuracy | x (0.5)
|
| Min Scale Interval | 0.1g
|
| Max. Speed | 60 WPM
|
| Hopper Volume | 1.6L / 2.5L
|
| Control System | MCU / PLC
|
| HMI | 7’’ / 10’’ color touch screen
|
| Power Supply | AC220V±10% 50HZ/60HZ, 1.5KW
|
| Packing Dimension | 1,140(L)*1,140(W)*1,853(H)mm
|
| Package weight | 385kg
|

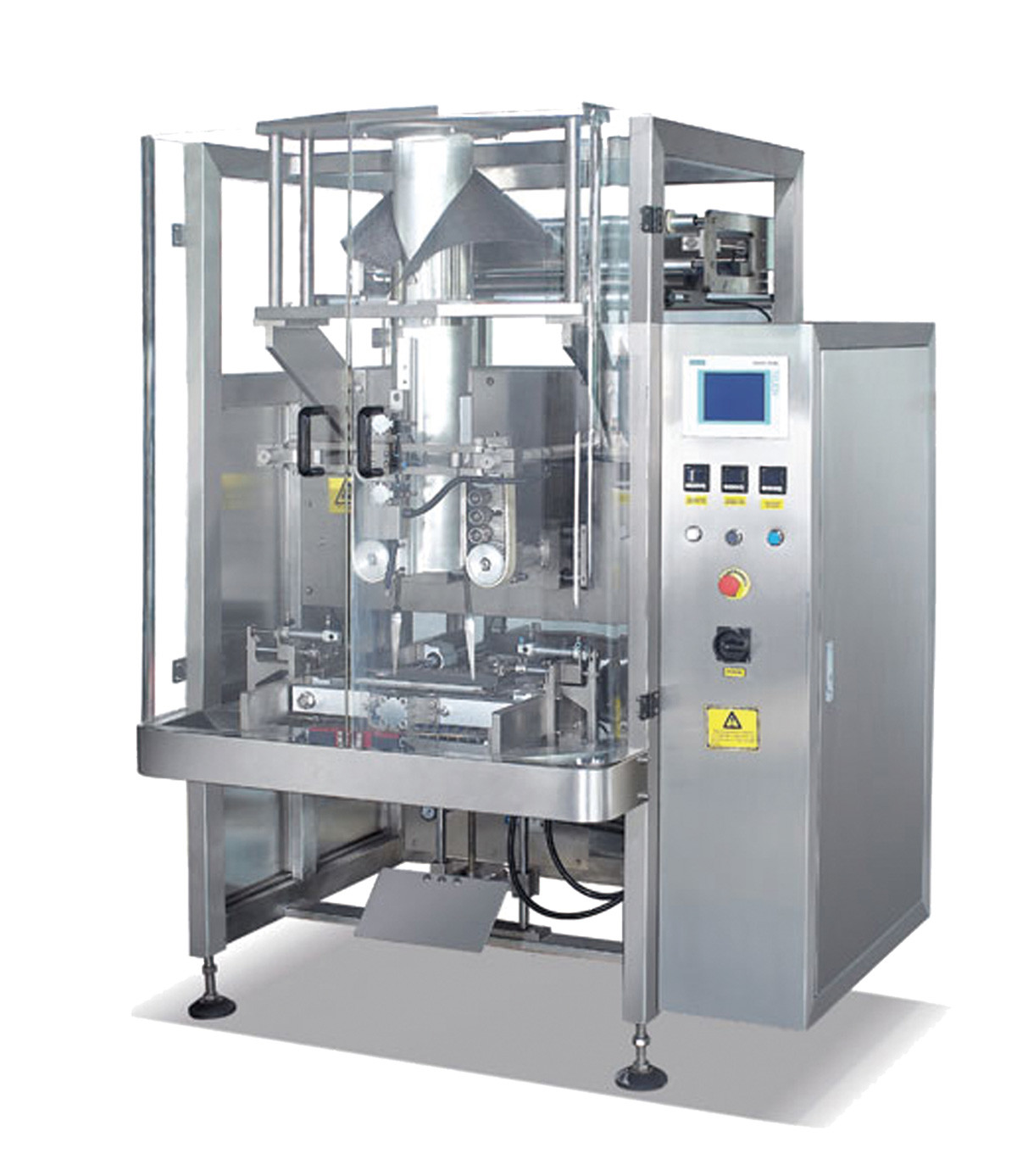

Pouch Bag Filling Packing Machine VFFS 420 with Date & Batch
Stamping for Nuts Sugar Grain
Application:
It is suitable for dosing and packaging fluidic or low fulidity
materials, like milk powder, albumen powder, rice powder, coffee
powder, solid drink, condiment, white sugar, dextrose, food
additive, corn powder, icing powder etc.
Meanwhile, It is also sutiable for dosing and packaging
pharmaceuticals, fodder, detergent powder, agriculture pesticide
and so on.
Features:
1. Imported PLC control system with human-machine interface and
easy operating visual touch screen.
2. Servo film running system, pneumatic horizontal sealing control,
precise positioning, excellent machine performance and nice
packaging.
3. Perfect automatic alarm and protection function to minimize the
loss.
4. Full packaging process of measuring, feeding, filling, bag
forming and date printing in one automatic operation by the machine
equipped with measurement device.
5. Bag type: pillow bag, gusset bag and hole-punching bag.
6. Maximize the reliability and intelligence of the whole machine.
Technic Parameters
| Model | 320 VFFS | 420 VFFS |
| Packing Speed | 10-80 bpm | 10-70 bpm
|
| Bag Size | 50-200(L)*60-150(W)mm | 60-300(L)*60-200(W)mm
|
| Bag Type | pillow bag, gusset bag, hole punching bag, vacuum bag
|
| Film Width | 140-320mm | 140-420mm
|
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm
|
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
|
| Pulling Belt Type | single / dual belt | single / dual belt
|
| Air Consumption | 0.8Mps 0.25m³/min | 0.8Mps 0.5m³/min
|
| Power Supply | single phase 220V 50HZ/60HZ, 2.2KW | single phase 220V 50HZ/60HZ, 2.2KW
|
| Machine Dimension | 1,115(L)*800(W)*1,370(H)mm | 1,530(L)*970(W)*1,600(H)mm
|
| Machine Weight | 300kg | 450kg
|

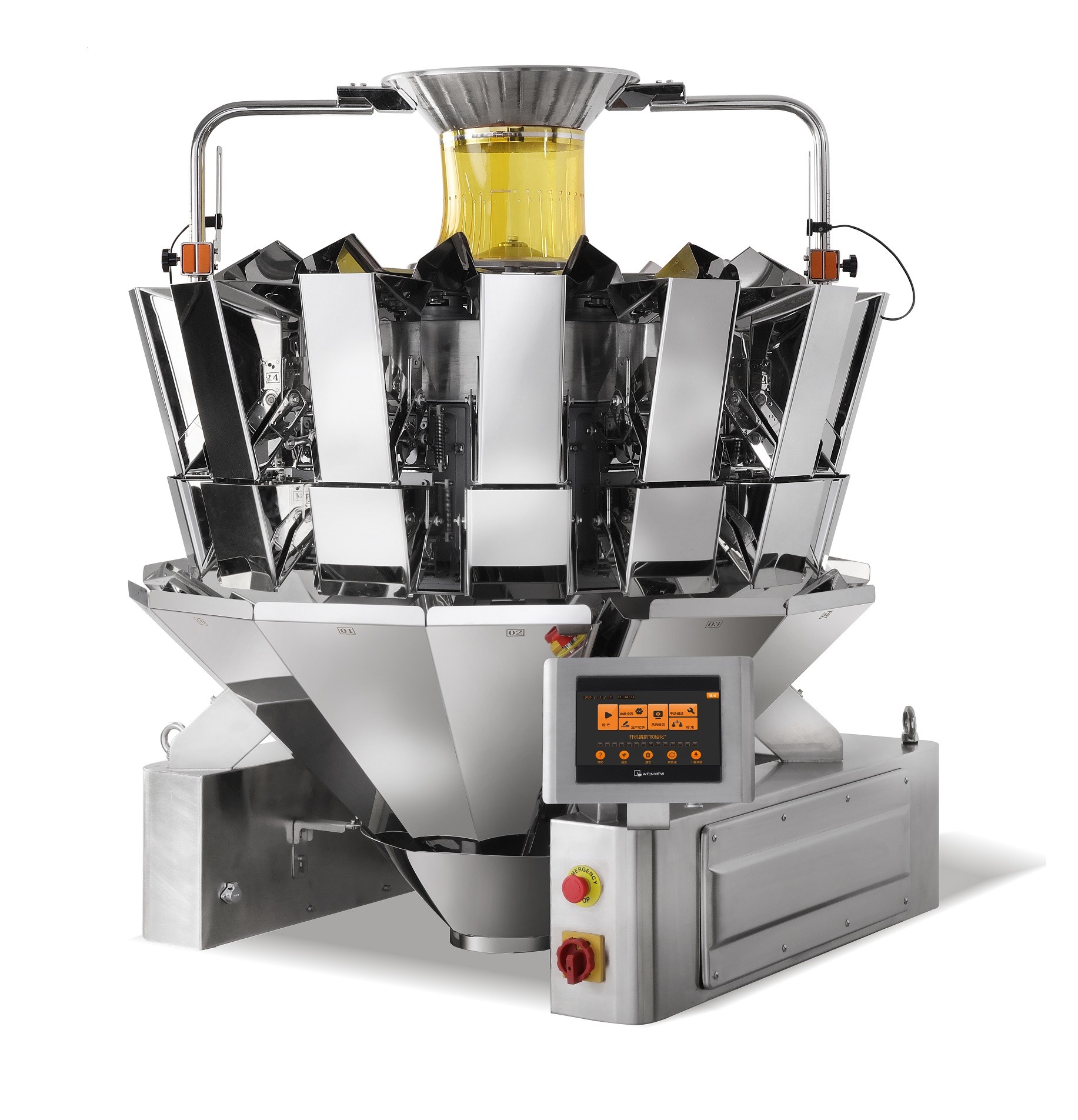

10 Head 1.6L/2.5L Hopper Multihead Weigher SUS304 Plain /Dimple for
Foods,Nuts,Powder
Inclined Elevator
Application:
Applicable for lift-conveying of granular products, such as potato
chips, candies, nuts, frozen food, green vegetable, chemical
medicine, etc.
Main Function & Features:
1. The belt is made of food grade polypropylene (PP) material, free
adjustment of belt length and width, good-looking, hard to deform
and high and low temperature resistant.
2. Wide range of applications, long service life, various patterns
of belt surface, sidewall and skirt for option.
3. Able to combine with other equipment to make a whole production
line for continuous or intermittent automatic weighing and
packaging.
4. Special belt material is necessary when lifting acid, alkaline,
oily, organic solvent products or products with high temperature.
5. Variable frequency drive (VFD) to adjust conveying speed. Easy
disassembly and maintenance. Convenient for cleaning.
Technical Parameters:
| Contents | Specifications
|
| Body Material | SUS304
|
| Conveyor Type | belt / chain plate
|
| Belt Material | PVC / PU / PP
|
| Sidewall / Skirt Height | Sidewall: 50mm; Skirt: 75mm or per requirement
|
| Power Supply | single / 3 phase 220V/380V 50HZ/60HZ, 1.1KW
|
| Conveying Speed | 0~20m/min
|
| Conveyor Width(mm) | custom-made per requirement
|
| Machine Dimension(mm) | custom-made per requirement
|
Customized Supporting Platform
Application:
Mainly used for supporting multihead weigher, packaging machine and
or other equipment.
Main Functions & features:
1. Made of stainless steel or carbon steel with powder coating.
with beautiful appearance structural durability.
2. Humanized guardrail, staircase and anti-slip plate to ensure
safe working condition.
3. Easy maintenance, easy disassembly, easy cleaning. Non-standard
size can be customized per customer’s requirement.
Technical Parameters:
| Contents | Specifications |
| Body Material | carbon steel / stainless steel |
| Platform Plate | anti-slip dimple aluminum plate / anti-slip dimple stainless steel
plate (Thickness: 3mm) |
| Guardrail Height | 1,000mm / 1,100mm / 1,200mm (Φ38*2 round tube) |
| Stand | 100*100*3mm / 150*150*3mm or custom-made per requirement |
| Frame Square Tube | 100*50*2 or custom-made per requirement |
| Dimension (mm) | custom-made per requirement |
Packing & Delivery:
Customer Cases display:
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing
experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance
are available for you.
2. If any problems happened, telecom or online face to face
communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for
your countries.
4. The machine will have 1 year warranty of machine.
