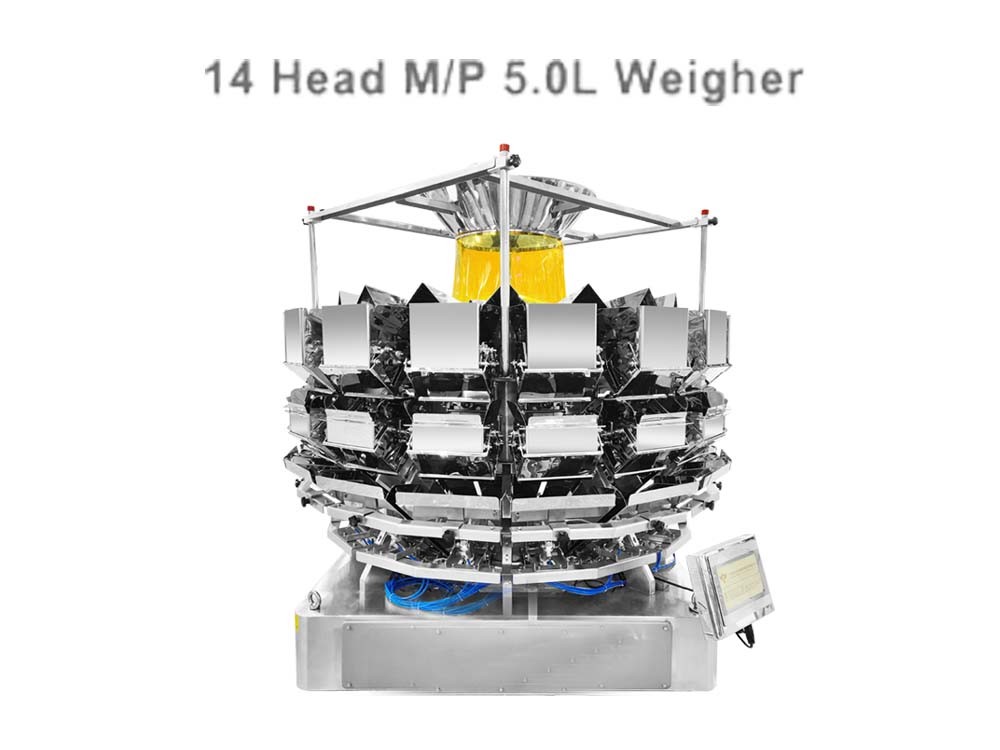

    Stainless Steel Machine Frame 5L Volume For Salads Weighing Equipment

    Ask Lasest Price
    Brand Name : UUPAC
    Model Number : TY-A-M/P14-3
    Certification : CE ISO9001
    Price : USD6000-8000 Per set
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Stainless Steel Machine Frame 5L Volume For Salads Weighing Equipment

    Stainless Steel Machine Frame 5L Volume For Salads Weighing Equipment
    Application:
    Weighing large pieces of vegetables, Salads, large size nuts and fruits
    Stainless Steel Machine Frame 5L Volume For Salads Weighing EquipmentStainless Steel Machine Frame 5L Volume For Salads Weighing Equipment

    Application:
    Applicable for weighing of light or bulky products, such as large-sized nuts, vegetables, salads, etc.
    Main Function & Features:
    1. Professional digital weighing module with high precision and good stability
    2. Control system: MCU or PLC (optional).
    3. Touch screen interface with different levels of authorized access; up to 16 different languages for choice; application
    software upgraded through USB.
    4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
    5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
    6. Weighing and counting function to meet diverse needs from customers.
    7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running
    status of the machine.
    8. Machine body with SUS304/316 for option and IP65 dust and waterproof design.
    9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

    10. Modular design of control system for easy maintenance and cost-saving


    Technical Parameters:


    Model
    TY-A-M14-3;TY-A-P14-3
    Max. Weighing (one hopper)
    100-5000g
    Accuracy
    x (0.5)
    Min. Scale Interval
    0.1g
    Max. Speed
    60 WPM
    Hopper Volume
    5.0L
    Control System
    MCU / PLC
    HMI
    7’’ / 10’’ color touch screen
    Power Supply
    AC220V/110V ±10% 50HZ/60HZ, 2KW
    Packing Dimension
    Machine: 1,530(L)*1,530(W)*1,658(H)mm
    Spare parts: 1,480(L)*1,100(W)*1,238(H)mm
    Package weight
    Machine: 600kg
    Spare parts: 330kg


    Welcome to contact us for a free quote
