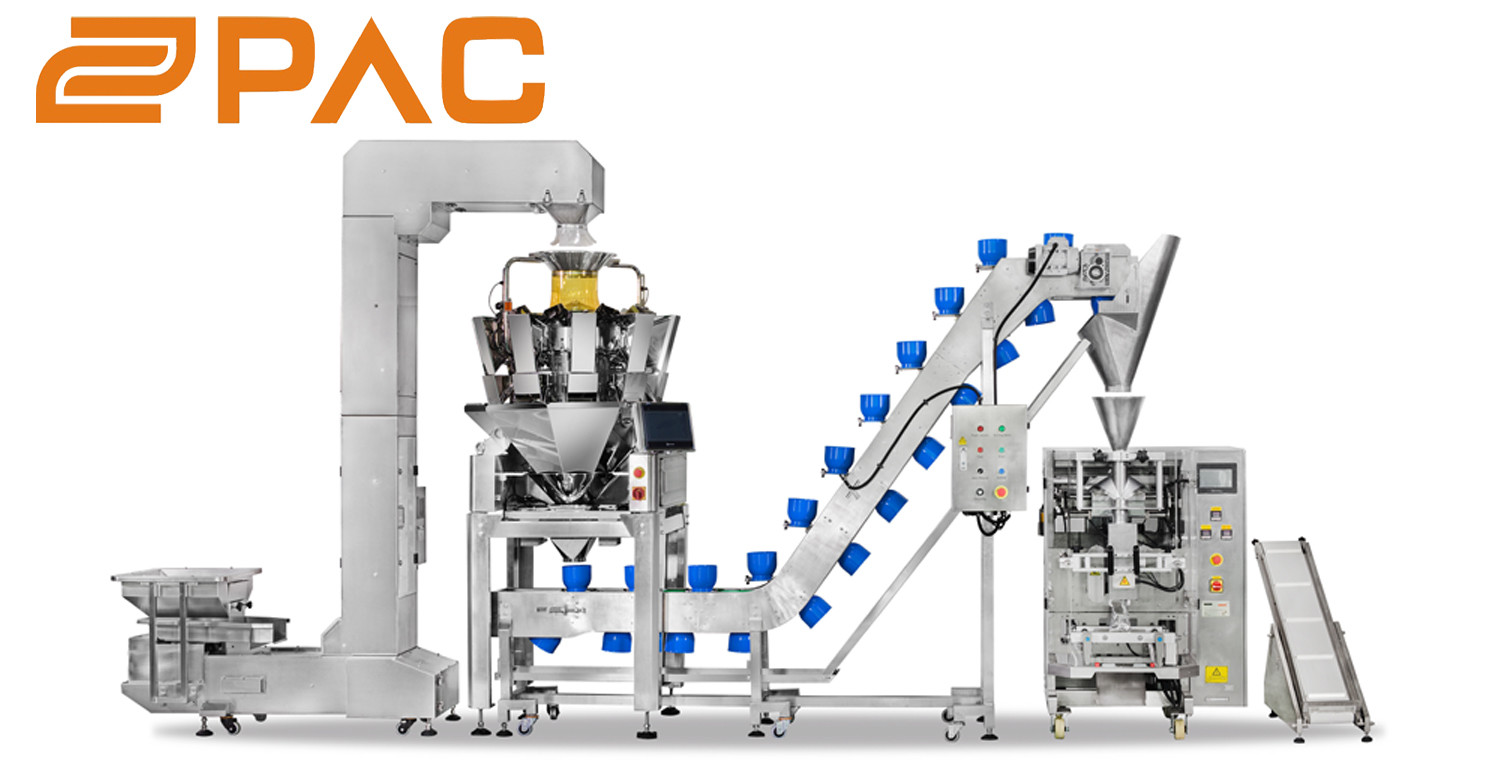

Bowel Elevator for Seafoods Dried Fruits Multihead Weighing and
Packing Machine 70BPM Synchronous Servo
Application:
Applicable for weighing of granular, bar-shaped products, such as
sunflower / melon seeds, almonds, pistachios, pine nuts, candies,
puffed food, beans, frozen food, pet food, snacks, hardware and
chemicals.
Main Function & Features:
1. Professional digital weighing module with high precision and
good stability
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized
access; up to 16 different languages for choice; application
software upgraded through USB.
4. Factory parameters recovery function; 99 preset product
parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent
products from blocking.
6. Weighing and counting function to meet diverse needs from
customers.
7. Real-time display of amplitude of each vibration pan as well as
product weight in each hopper to better monitor the running status
of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and
waterproof design.
9. Cleaning function: able to make the hoppers in opening state for
easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and
cost-saving.
Technic Parameter:
| Model | TY-A-M10-2
|
| Max. Weighing (one hopper) | 20-1000g
|
| Accuracy | x (0.5)
|
| Min Scale Interval | 0.1g
|
| Max. Speed | 60 WPM
|
| Hopper Volume | 1.6L / 2.5L
|
| Control System | MCU / PLC
|
| HMI | 7’’ / 10’’ color touch screen
|
| Power Supply | AC220V±10% 50HZ/60HZ, 1.5KW
|
| Packing Dimension | 1,140(L)*1,140(W)*1,853(H)mm
|
| Package weight | 385kg
|
Pouch Bag Filling Packing Machine VFFS 420 with Date & Batch
Stamping for Nuts Sugar Grain
Application:
It is suitable for dosing and packaging fluidic or low fulidity
materials, like milk powder, albumen powder, rice powder, coffee
powder, solid drink, condiment, white sugar, dextrose, food
additive, corn powder, icing powder etc.
Meanwhile, It is also sutiable for dosing and packaging
pharmaceuticals, fodder, detergent powder, agriculture pesticide
and so on.
Features:
1. Imported PLC control system with human-machine interface and
easy operating visual touch screen.
2. Servo film running system, pneumatic horizontal sealing control,
precise positioning, excellent machine performance and nice
packaging.
3. Perfect automatic alarm and protection function to minimize the
loss.
4. Full packaging process of measuring, feeding, filling, bag
forming and date printing in one automatic operation by the machine
equipped with measurement device.
5. Bag type: pillow bag, gusset bag and hole-punching bag.
6. Maximize the reliability and intelligence of the whole machine.
Technic Parameters
| Model | 320 VFFS | 420 VFFS |
| Packing Speed | 10-80 bpm | 10-70 bpm
|
| Bag Size | 50-200(L)*60-150(W)mm | 60-300(L)*60-200(W)mm
|
| Bag Type | pillow bag, gusset bag, hole punching bag, vacuum bag
|
| Film Width | 140-320mm | 140-420mm
|
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm
|
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
|
| Pulling Belt Type | single / dual belt | single / dual belt
|
| Air Consumption | 0.8Mps 0.25m³/min | 0.8Mps 0.5m³/min
|
| Power Supply | single phase 220V 50HZ/60HZ, 2.2KW | single phase 220V 50HZ/60HZ, 2.2KW
|
| Machine Dimension | 1,115(L)*800(W)*1,370(H)mm | 1,530(L)*970(W)*1,600(H)mm
|
| Machine Weight | 300kg | 450kg
|
10 Head 1.6L/2.5L Hopper Multihead Weigher SUS304 Plain /Dimple for
Foods,Nuts,Powder
CW300 Weight Checker with Rejection Device
Application:
It is suitable for sorting finished product such as candy bag ,
bottle, food box.
Features:
1. High accuracy and tailored load cell.
2. Intelligent multi-sampling stable mode, higher accuracy.
3. Intelligent alarm diagnosis.
4. Automatic zero tracking.
5. Modular and CAN bus technology, more efficient and stable
6. Modbus Industry communication protocol
7.VFD adopted to adjust speed continuosly with large regulating
range.
Technic Parameters
| Model | TYA-CW300 | TYA-CW400
| TYA-CW500 |
| Weighing Range | 10kg
| 20kg | 30kg |
| Weighing Accuracy | ±2g
| ±5g | ±10g |
| Weighing Resolution | 0.1g | 0.1g | 0.1g |
| Max Speed | 65 WPM | 50 WPM
| 30 WPM |
| Belt Width | 300mm | 400mm
| 500mm |
| Weighing Belt Length | 450mm | 570mm | 1050mm |
| Infeed/Outfeed Belt Lenght | 450mm/800mm | 570mm/Roller 930mm | Roller Rejector 800mm |
| Power Supply | AC220V ±10%/1P/0.5KW | AC220V ±10%/1P/0.5KW | AC220V ±10%/1P/0.5KW |
| Control System | High speed A/D sampling controller | High speed A/D sampling controller
| High speed A/D sampling controller |
| Pre-set Prod. No. | 99 | 99
| 99 |
| Belt Height | 750±50mm | 750±50mm
| 750±50mm |
| Optional Rejector | Air Blower/ Swing Arm/ Pusher | Pusher | Pusher |
Horizontal Conveying Metal Detector
Application:
Used in food, pharmaceutical, chemical,textile and garment, toy
industry and so on, which is authorized by HACCP(food industry),
GMP(pharmaceutical industry), and it can be applied for cookies,
sauces, dumpling, hum, soup, candy, meat, frozen food, salted food,
fast food, bakery etc, and other industries that have special
requirements on detection sensitivity, anti-interference,
waterproof. Besides, it can detect broken needles, metals mixed
with products.
Features:
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to
effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process
testing data of detection signal, which can enhance detection
efficiency.
4. To stop mistaking in transmission & reception in advance, the
detector handles many operations. Easy to adjust the detecting
parameters.
5. Large LCD display with Chinese & English language and so on;
Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally
learn and store product's features.Easy to operate without manual
participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic flap rejection system can improve production
efficiency and save labor costs.
Technic Parameters
| Model | TYA-MD3011/ 3015/3018/3021 | TYA-MD4011/ 4015/4018/4021 | TYA-MD5018/ 5023/5028 | TYA-MD6028 |
| Body Material | SUS304 |
| HMI | 7” color touch screen |
| Detected Product Width | ≤300mm | ≤400mm | ≤500mm | ≤600mm |
| Detected Product Height | ≤80~180mm | ≤80~180mm | ≤150~250mm | ≤250mm |
Detecting Sensitivity (idle status) | Fe≥Φ0.5~0.8mm SUS304≥Φ1.0~1.5mm | Fe≥Φ0.7~0.8mm SUS304≥Φ1.2~1.5mm | Fe≥Φ0.7~1.2mm SUS304≥Φ1.5~2.0mm | Fe≥Φ1.5mm SUS304≥Φ2.0mm |
| Reject Device | flash light alarm; pneumatic pusher / sliding (optional) |

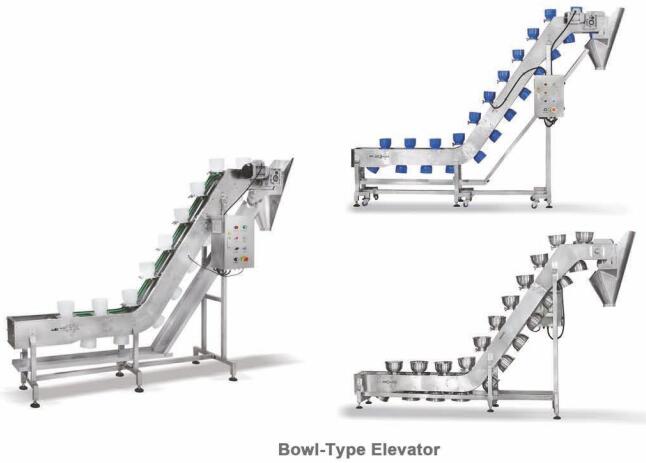

Application:
Applicable for lift-conveying of solid, granular, small-sized
products
Features:
1. Able to perform in continuous or intermittent conveyance and
support other feeding equipment.
2. Bucket made of food grade PP material and able to quickly remove
from machine for cleaning.
3. Conveying speed is adjustable.
4. Two buckets option: 1.8L or 3.6L or 3.8L.
5. Able to connect with rotary packaging machine to achieve solid &
liquid mixed product packaging.
Technic Parameters:
| Product Name | Bowel Elevator
|
| Body Material | SUS304
|
| Bowl Volume | 0.8L / 1.4L / 3L
|
| Power Supply | single / 3 phase 220V/380V 50HZ/60HZ, 0.75KW
|
| Conveying Capacity | 1.5m³/h / 2.5m³/h / 4m³/h
|
| Machine Dimension | 1,450mm or per customer’s requirement
|
Customized Supporting Platform
Application:
Mainly used for supporting multihead weigher, packaging machine and
or other equipment.
Main Functions & features:
1. Made of stainless steel or carbon steel with powder coating.
with beautiful appearance structural durability.
2. Humanized guardrail, staircase and anti-slip plate to ensure
safe working condition.
3. Easy maintenance, easy disassembly, easy cleaning. Non-standard
size can be customized per customer’s requirement.
Technical Parameters:
| Contents | Specifications |
| Body Material | carbon steel / stainless steel |
| Platform Plate | anti-slip dimple aluminum plate / anti-slip dimple stainless steel
plate (Thickness: 3mm) |
| Guardrail Height | 1,000mm / 1,100mm / 1,200mm (Φ38*2 round tube) |
| Stand | 100*100*3mm / 150*150*3mm or custom-made per requirement |
| Frame Square Tube | 100*50*2 or custom-made per requirement |
| Dimension (mm) | custom-made per requirement |
