Multihead Weigher Packing Machine Bowel Elevator For Mixed Snacks
Weighing And Packing
Product Description

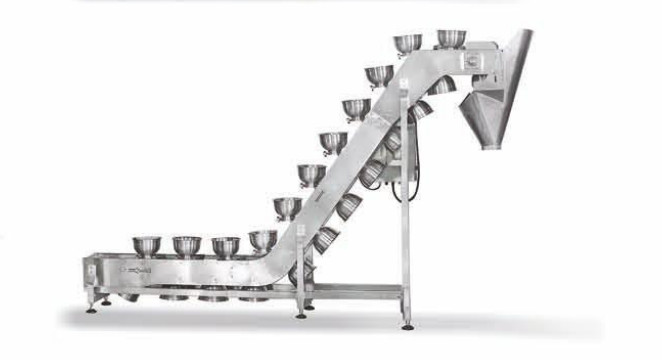

Bowl-Type Elevator
Application:
Applicable for lift-conveying of solid, granular, small-sized
products, and more often for secondary lifting solution due to
field space limitation.
Main Function & Features:
1. Able to perform in continuous or intermittent conveyance and
support other feeding equipment.
2. Bowl made of food grade PP material and able to quickly remove
from machine for cleaning.
3. Able to achieve second feeding (need to adjust the timing) and
the conveying speed is adjustable.
4. Even when the bowl is in inclined position, it can still be kept
level and the product will not overflow.
5. Able to connect with rotary packaging machine to achieve solid &
liquid mixed product packaging.
Technic Specication:
| Contents | Specifications
|
| Body Material | SUS304
|
| Bowl Volume | 0.8L / 1.4L / 3L
|
| Power Supply | single / 3 phase 220V/380V 50HZ/60HZ, 0.75KW
|
| Conveying Capacity | 1.5m³/h / 2.5m³/h / 4m³/h
|
| Machine Dimension | 1,450mm or per customer’s requirement
|

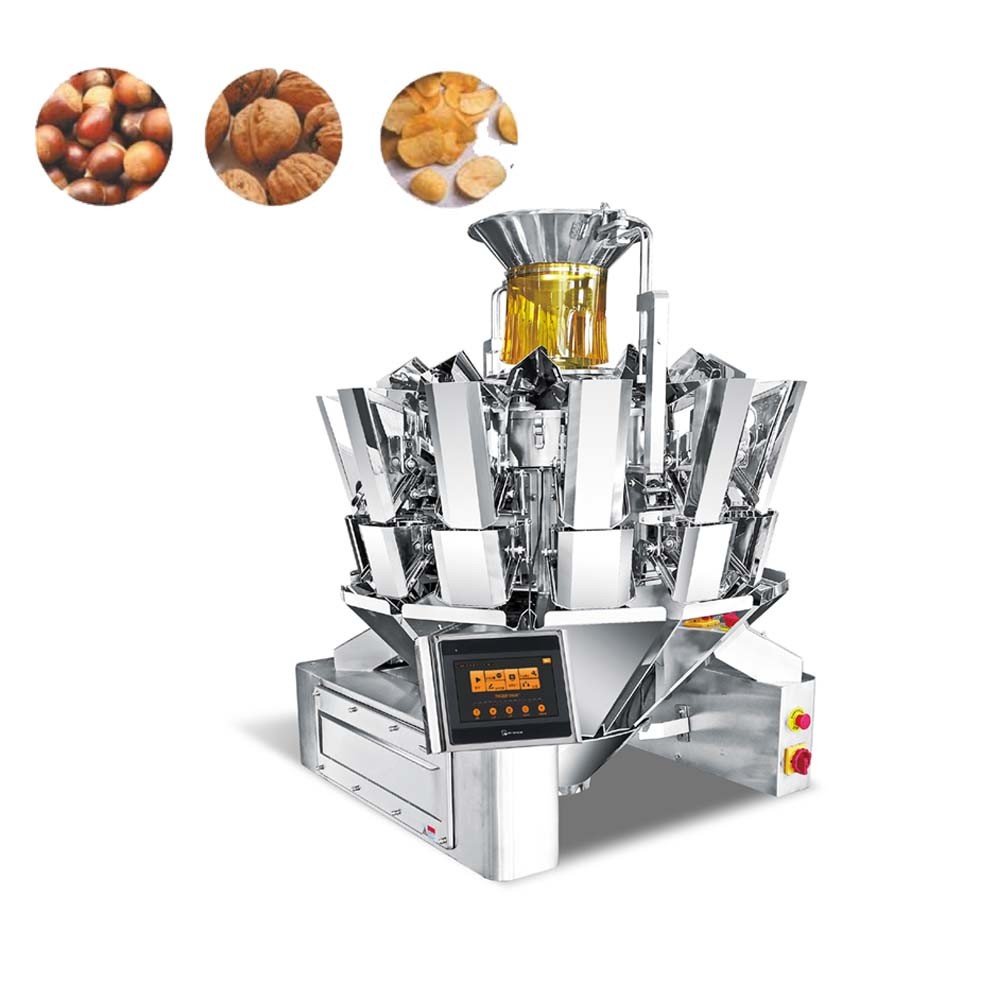

10/14 Head Multihead Weigher 120 p/M
Application:
Applicable for weighing of all types of small-sized / dosed
granular products, such as prepared herbal medicine, tea, seeds,
MSG,chicken essence seasoning, coffee beans, chocolate beans, etc.
Main Function & Features:
1. Professional digital weighing module for high precision and good
stability.
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized
access; up to 16 different languages for choice; application
software upgraded through USB.
4. Factory parameters recovery function; 99 preset product
parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent
products from blocking.
6. Weighing and counting function to meet diverse needs from
customers.
7. Real-time display of amplitude of each vibration pan as well as
product weight in each hopper to better monitor the running status
of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and
waterproof design.
9. Cleaning function: able to make the hoppers in opening state for
easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and
cost-saving.
11. Specifically designed for small granular products with high
precision and fast working speed.
Technic Specifications:
| Model | TY-A-M14-1; TY-A-P14-1
|
| Max. Weighing (one hopper) | 5-200g
|
| Accuracy | x (0.5)
|
| Min. Scale Interval | 0.1g
|
| Max. Speed | 120 WPM
|
| Hopper Volume | 0.8L/0.5L
|
| Control System | MCU / PLC
|
| HMI | 7’’ / 10’’ color touch screen
|
| Power Supply | AC220V ±10% 50HZ / 60HZ, 2KW
|
| Packing Dimension | 1,370(L)*1,060(W)*1,105(H)mm
|
| Package weight | 240kg
|
Rotary(Vacuum)Bag Packaging Machine
Main Function & Features:
1. Advanced design, reasonable structure, convenient operation and
maintenance.
2. Precise positioning with servo film running system and
synchronous belts to pull film, ensuring stability and reliability.
3. Automatic correcting function; time and film saving to improve
the reliability and intelligence of the whole machine.
4. Multiple automatic alarm and protection functions to minimize
the loss
5. Full packaging process of measuring, feeding, filling, bag
forming and date printing, air in/out, counting and finished
product conveying in one automatic operation by the machine
equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole punching bag.
Technic Specification:
| Model | 520 VFFS
|
| Packing Speed | 10-60 bpm
|
| Bag Size | 50-350(L)*50-250(W)mm
|
| Bag Type | pillow bag, gusset bag, hole punching bag
|
| Film Width | 120-520mm
|
| Film Thickness | 0.04-0.09mm
|
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
|
| Pulling Belt Type | synchronous belt film pulling
|
| Air Consumption | 0.8Mps 0.4m3/min
|
| Power Supply | single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW
|
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm
|
| Machine Weight | 480kg
|
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing
experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance
are available for you.
2. If any problems happened, telecom or online face to face
communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for
your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong
China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product? Is it easy damaged during
transportation?
A: No. We takes of wooden case and it is very safe.
Q4. What's your main product?
A: We are professional in multi-head weigher, conveyor machine,
packing machine, Metal detector, Check weigher and other related
electronic products and machine
Q5. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer
tech-support. All of our products normal warranty is 12months.
Q6. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products
for customers.
